Fermentation Filtration & Clarification Solutions
Improve fermentation performance with filtration solutions designed to support process consistency, contamination control and downstream recovery.
Filtration’s Role in Fermentation Success
Fermentation processes require consistent upstream control and reliable downstream processing to maintain performance at scale. Filtration supports contamination control, process consistency and downstream recovery by helping maintain input quality and reduce variability across production.
What is fermentation in food and ingredient manufacturing?
Fermentation is used to manufacture ingredients such as amino acids, enzymes, organic acids and proteins derived from precision fermentation. As production scales, process consistency becomes increasingly important for downstream separation and recovery.
What challenges impact fermentation processing?
Filtration Solutions
Upstream Fermentation Protection
Contamination from air, water, nutrients or utilities can disrupt fermentation processes and impact product formation. Maintaining controlled upstream conditions helps support reliable process performance.
-
Sterile Air & Gas Filtration
-
Sterile Liquid Filtration
-
Steam Filtration
Air and gas inputs represent critical control points in fermentation. Contaminants introduced through compressed air or tank vents can impact batch performance and lead to process disruption. Sterile air and gas filtration helps maintain clean gas inputs and supports consistent fermentation conditions.
Process liquids used in fermentation can introduce variability if not properly controlled. Filtration helps maintain consistency in media, feeds and water inputs.
Steam supports sterilization and process control across fermentation systems. Filtration helps maintain clean utility delivery and supports consistent operation.
PSS® Plus Metal Elements
Durable metal filters providing tight permeability control for culinary grade steam.
Downstream Processing
After fermentation, the broth contains product mixed with cells and suspended solids. The efficiency of downstream processing depends on how effectively these components are separated and prepared for further purification.
Clarification plays a key role in supporting product recovery and consistent downstream processing. Variability in broth conditions can influence filtration performance, particularly at the first clarification step where separation is most sensitive.
Clarification for High Value Ingredients
The performance of clarification can be influenced by broth conditions such as solids content, viscosity, and variability between batches. Stable operation at this stage supports downstream consistency and overall process reliability.
Ceramic membrane systems are used to provide controlled clarification in enclosed, hygienic configurations and to support consistent operation under a range of process conditions.
Our Solutions
Membralox® GP-IC Ceramic Membrane Systems
Provides selective, high transmission (up to ~95%) for challenging or premium fermentation ingredients.
Membralox IC Ceramic Membranes
DE free ceramic clarification with controlled permeation and hygienic enclosed design.
Final Filtration
Final filtration provides an additional control step before packaging, helping remove residual particles and supporting product quality targets. The appropriate filtration strategy depends on product characteristics, packaging requirements and process objectives.
Our Solutions

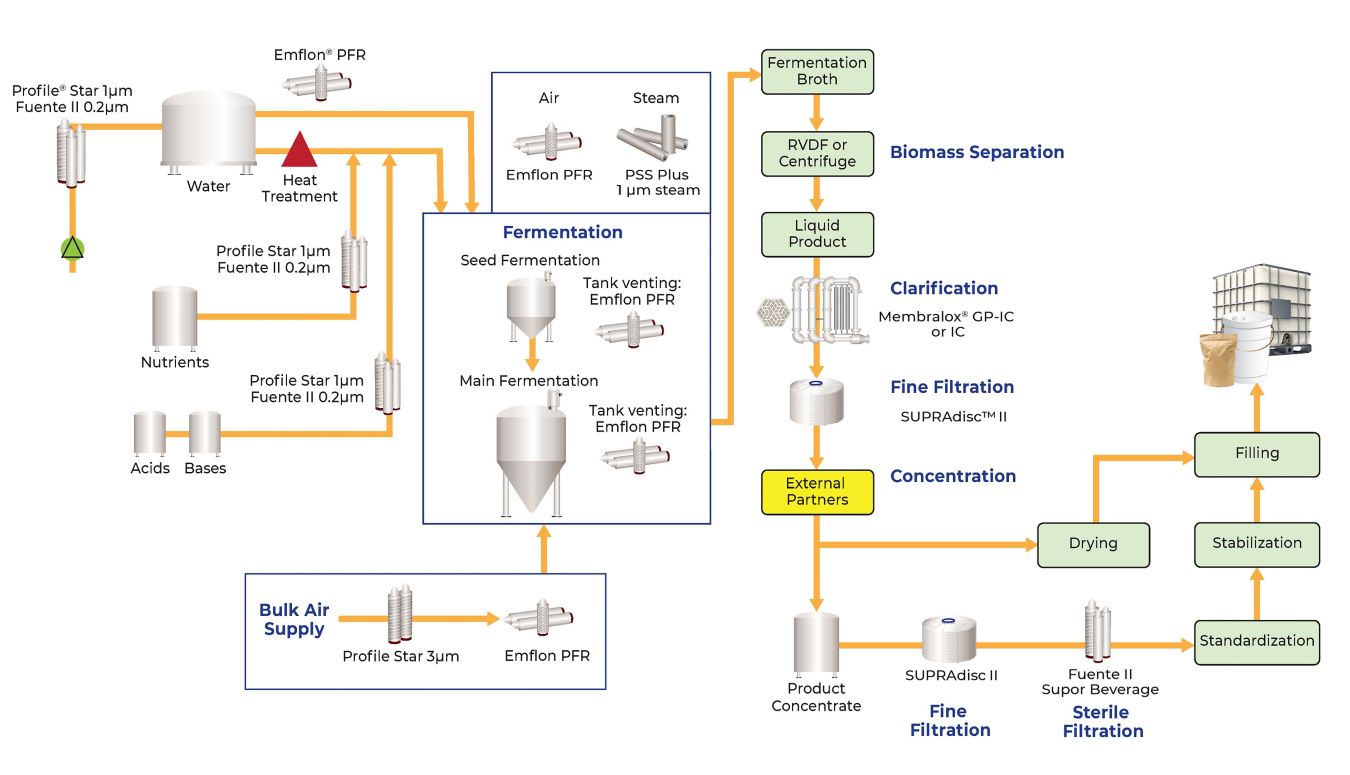

Fermentation and clarification process flow
Filtration plays a role at multiple stages of the fermentation process, from sterile air and liquid preparation through clarification and final filtration. Selecting the right filtration strategy at each stage can help support process consistency and downstream performance.
The process flow below highlights common filtration and separation points used across fermentation applications.
Example fermentation process flow showing key contamination control, clarification and final filtration stages used to support product recovery and quality.
Need support evaluating your fermentation process? Talk with a fermentation specialist.
Applications across food and ingredient fermentation
Pall solutions support fermentation-based manufacturing across a range of applications, including:
- Amino acids
- Enzymes
- Alternative proteins
- Organic acids
- Biomass and other bio derived ingredients
Frequently Asked Questions
How do you prevent contamination in fermentation?
Contamination is minimized by filtering air, water, steam, and feed streams. Emflon® air filters, Profile® Star pre filters, PSS® Plus steam elements and Fuente II sterile liquid filters all contribute to upstream protection.
Why is fermentation broth clarification important?
Clarification prepares fermentation broth for downstream processing by removing cells and solids. This supports consistent operation in subsequent processing steps and helps maintain overall process performance.
What final filtration is used before packaging?
Final filtration provides an additional control step before packaging. SUPRAdisc™ II, Fuente II and Supor* Beverage filters are used to support product quality and consistency before packaging.
Technical Resources
Access technical resources related to fermentation clarification, ceramic membrane systems and ingredient manufacturing applications.
